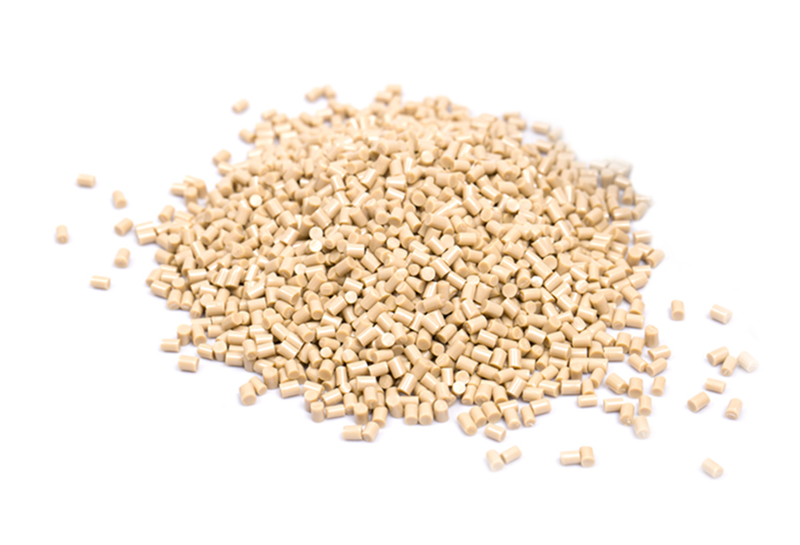

PEEK Unfilled

Poly (ether ether ketone)(PEEK) is a linear polymer whose main chain is composed of Aryl, ketone and ether bonds. PEEK has a large number of benzene rings in its molecular chain, so its heat resistance can match that of polyimide, while two ether chains and a renegade group provide the material with flexibility and excellent workmanship.The structure is as follows:


PEEK has good melt fluidity and thermal stability above the melting point. Therefore, it has the typical Thermoplastic processing properties, so it can be used injection molding, extrusion, blow molding, lamination and other molding methods, but also spinning, film. Although the melting temperature range of polyether ether ketone is 360 ~ 400 °C, its thermal decomposition temperature is over 520 °C, so it still has a wide range of processing temperature.

PEEK Application

Polyether ether ketone is a thermoplastic substance that was created in 1978. Eventually, it came to market in the 1980s and has seen applications in industries as diverse as below:

Aerospace

Car

Medical

Railway

Oil and Gas

Semiconductor

PEEK Unfilled Technical Data Sheets

Item Test Standard or Instrument Unit (100%PEEK)
PEEK i330G
(100%PEEK)
PEEK i550g
(100%PEEK)
PEEK i770G
Tensile strength(23℃) ISO-527 MPa 110 100 100
Tensile elongation(23℃) ISO-527 % 25 40 45
Flexural strength(23℃) ISO 178 MPa 175 170 165
Flexural modulus(23℃) ISO 178 GPa 4.3 4.2 4.1
Compressive strength(23℃) ISO 604 MPa 130 125 125
Charpy Impact Strength ISO 179/1eA KJ/㎡ 4 6 7
Izod Impact Strength ISO 180/A KJ/ 5 6 .5 7 .5
Melt Index ISO 1133 g 10min-1 80 20 10

PEEK Unfilled Data Download

Item Product information model colour Basic physical properties/application
1 PEEK iPEEK® i330G i330G NAT/BLK Melt Index=80g/cm ,virgin Download
2 PEEK iPEEK® i550G i550G NAT/BLK Melt Index=20g/cm,virgin Download
3 PEEK iPEEK® i770G i770G NAT/BLK Melt Index=10g/cm,virgin Download
4 PEEK iPEEK® i551G i551G NAT/BLK Melt Index=14g/cmImplantable ,virgin Download
5 PEEK iPEEK® i551LG i551LG NAT/BLK Melt Index=330g/cm ,virgin Download
