The Leading China Manufacturer to Develop PEEK Tube

Size: Max OD=430mm+; Support customization of any OD&ID

Contact us

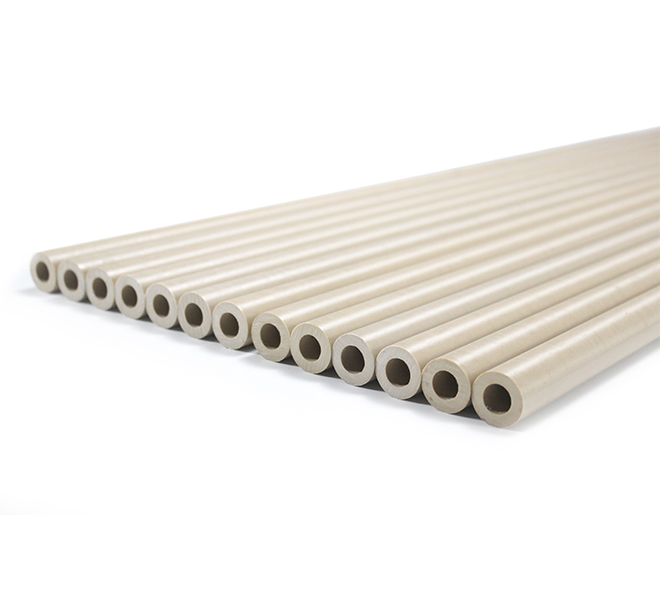

PEEK Tube

PEEK is a high-performance thermoplastic that is tough, durable, firm, and creep resistant. It offers excellent thermal, chemical, and hydrolysis resistance as well as excellent resistance to abrasion and dynamic fatigue. Its ability to run at high continuous temperatures up to (250º C) without permanent property degradation along with stable electrical properties makes PEEK an excellent alternative to fluoropolymers in aggressive environments. PEEK has also been shown to exhibit very low smoke and toxic gas emission when exposed to flame.

Among all the round PEEK finished part widely used in different industries, nearly half are hollow, which makes PEEK tube a much favorable choice compared with rod especially in the oil and gas, or semiconductor industry.

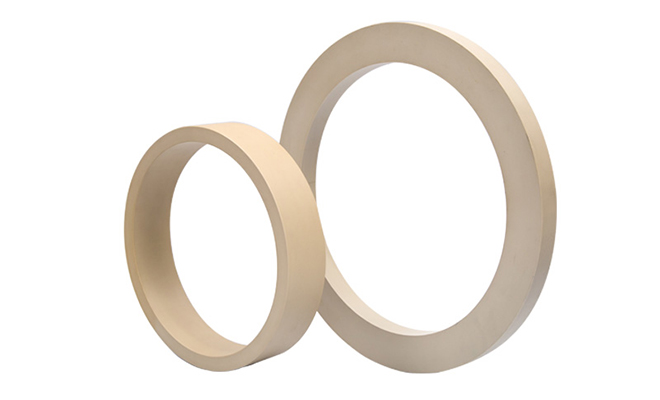

iPEEK® specializes in various processing methods to achieve the capability of producing PEEK tubes and rings for a wide range of dimensions. we produce PEEK tubes and rings through extrusion, compression molding, and injection molding. All processes offer a wide range of sizes that can be tailored to the customer’s needs.

With totally over 300 sizes,iPEEK® can offer PEEK tube with OD range from 10mm to 1200mm,and we keep ready stock of the over 200 sizes most commonly used PEEK tubes to ensure the fast delivery to our customers around the world.

Contact us

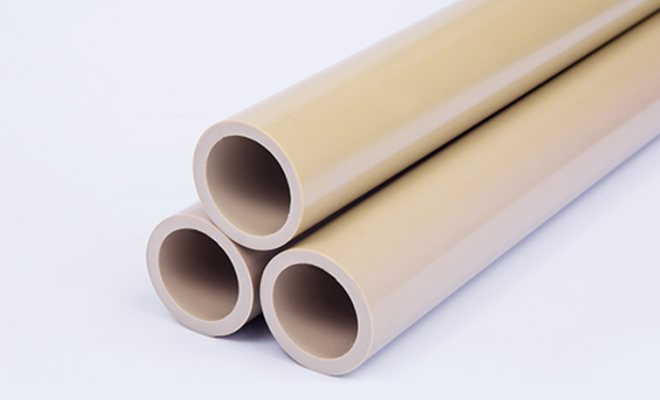

Main Advantages of PEEK Tube

● Good wearing performance with or without load

● High service temperature(long term 260℃)

● Good mechanical strength

● Good chemical resistance & Hydrosis resistance

● FDA approved

PEEK Application

Polyether ether ketone is a thermoplastic substance that was created in 1978. Eventually, it came to market in the 1980s and has seen applications in industries as diverse as below:

Aerospace

Car

Medical

Railway

Oil and Gas

Semiconductor

PEEK Tube Technical Data

Item Type Dimensions: OD x ID x L Colour Density Reference weight(Kg) Inventory
1 PEEK-TUBE 25mm x 15mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 0.45 Standing stock
2 PEEK-TUBE 30mm x 15mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 0.7 Standing stock
3 PEEK-TUBE 36mm x 15mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 1.11 Standing stock
4 PEEK-TUBE 42mm x 27mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 1.08 Standing stock
5 PEEK-TUBE 46mm x 27mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 1.45 Standing stock
6 PEEK-TUBE 52mm x 27mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 2.05 Standing stock
7 PEEK-TUBE 52mm x 37mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 1.38 Standing stock
8 PEEK-TUBE 55mm x 35mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 2.16 Standing stock
9 PEEK-TUBE 60mm x 40mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 2.38 Standing stock
10 PEEK-TUBE 62mm x 32mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 3 Standing stock
11 PEEK-TUBE 62mm x 37mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 2.25 Standing stock
12 PEEK-TUBE 66mm x 40mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 3 Standing stock
13 PEEK-TUBE 66mm x 50mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 2.15 Standing stock
14 PEEK-TUBE 67mm x 37mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 2.65 Standing stock
15 PEEK-TUBE 67mm x 50mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 2.15 Standing stock
16 PEEK-TUBE 70mm x 50mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 2.78 Standing stock
17 PEEK-TUBE 72mm x 48mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 3 Standing stock
18 PEEK-TUBE 75mm x 55mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 2.88 Standing stock
19 PEEK-TUBE 80mm x 60mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 3.17 Standing stock
20 PEEK-TUBE 91mm x 56mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 5.18 Standing stock
21 PEEK-TUBE 94mm x 70mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 4.19 Standing stock
22 PEEK-TUBE 96mm x 48mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 7.25 Standing stock
23 PEEK-TUBE 96mm x 80mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 2.96 Standing stock
24 PEEK-TUBE 100mm x 48mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 7.93 Standing stock
25 PEEK-TUBE 100mm x 80mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 4.32 Standing stock
26 PEEK-TUBE 103mm x 87mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 3.2 Standing stock
27 PEEK-TUBE 103mm x 81mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 4.35 Standing stock
28 PEEK-TUBE 113mm x 82mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 6.45 Standing stock
29 PEEK-TUBE 115mm x 85mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 6.15 Standing stock
30 PEEK-TUBE 123mm x 100mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 5.33 Standing stock
31 PEEK-TUBE 134mm x 108mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 6.55 Standing stock
32 PEEK-TUBE 135mm x 105mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 7.37 Standing stock
33 PEEK-TUBE 150mm x 135mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 4.98 Standing stock
34 PEEK-TUBE 154mm x 140mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 4.85 Standing stock
35 PEEK-TUBE 155mm x 118mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 10.6 Standing stock
36 PEEK-TUBE 164mm x 118mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 14.04 Standing stock
37 PEEK-TUBE 171mm x 145mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 8.73 Standing stock
38 PEEK-TUBE 182mm x 158mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 8.45 Standing stock
39 PEEK-TUBE 184mm x 158mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 9.36 Standing stock
40 PEEK-TUBE 198mm x 182mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 6.75 Standing stock
41 PEEK-TUBE 200mm x 155mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 17.78 Standing stock
42 PEEK-TUBE 222mm x 178mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 18.06 Standing stock
43 PEEK-TUBE 235mm x 207mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 12.74 Standing stock
44 PEEK-TUBE 252mm x 220mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 15.6 Standing stock
45 PEEK-TUBE 255mm x 240mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 7.75 Standing stock
46 PEEK-TUBE 258mm x 190mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 31.86 Standing stock
47 PEEK-TUBE 283mm x 257mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 14.9 Standing stock
48 PEEK-TUBE 337mm x 309mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 19.83 Standing stock
49 PEEK-TUBE 365mm x 318mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 32.75 Standing stock
50 PEEK-TUBE 374mm x 342mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 24.75 Standing stock
51 PEEK-TUBE 418mm x 359mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 44.78 Standing stock
52 PEEK-TUBE 425mm x 390mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 29.5 Standing stock
53 PEEK-TUBE 430mm x 359mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 58.65 Standing stock
54 PEEK-TUBE 431mm x 396mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 30.5 Standing stock
55 PEEK-TUBE 490mm x 430mm x 1000mm NAT/BLK/COLOR 1.32g/cm3 61.11 Standing stock

* Support customization of any size and shape

PEEK Tube Data Download

Item Product information
1 REDSPOT-PEEK_Technical-data-sheet Download
2 REDSPOT-PEEK-30CF_Technical-data-sheet Download
3 REDSPOT-PEEK-30GF_Technical-data-sheet Download
4 REDSPOT-PEEK-mod_Technical-data-sheet Download
5 MSDS PEEK GF PEEK CF PEEK MOD iPEEK PEEK_Product-Sheet Download
